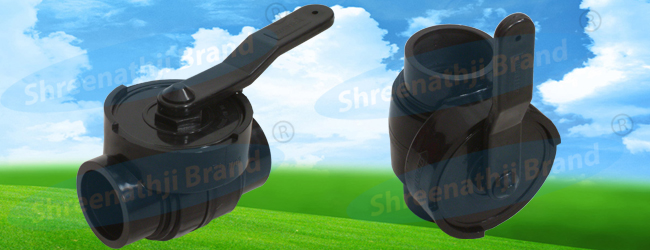

PP Top Entry Ball Valve
| Material Of Construction | Polypropylene (PP) |
| Design | Single Body moulded. |
| Max working temp | 50 c (consistently) |
| Connection End | Solid Seal screw / Plain & Thread Ball Valve |
| Test pressure | 07 kg./cm2 |
| Size Range | 25mm, 50mm, 65mm, 80mm |
| Color | Black |
| Standard | As per manufactuer |
| No. | DESCRIPTION | MATERIAL | QTY. |
|---|---|---|---|
| 1 | Body | Polypropylene | 1 |
| 2 | Ball | Polypropylene | 1 |
| 3 | Ball Cover | Polypropylene | 1 |
| 4 | Stem "o" ring | Neoprene Rubber | 1 |
| 5 | Cover gasket | Neoprene | 1 |
| 6 | Handle | Inside MS Plate, PP Coated | 1 |
| 7 | Handle Hex Pin | MS / SS | 1 |
| 8 | Handle Cap | PP | 1 |
| 9 | Seats | PTFE / L.D. | 2 |
