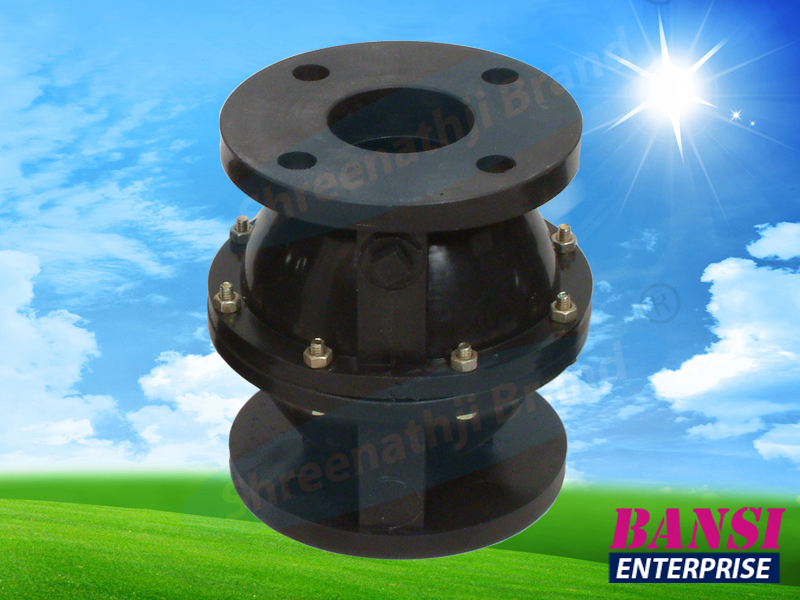

Bolt Nut PP NRV Flange End
Solid PP NRV Flange End
| Bolt Nut PP NRV Flange End | |
|---|---|
| Material Of Construction | Polypropylene (PP) |
| Design | Two Piece Body. |
| Max working temp | 50 c (consistently) |
| Connection End | Flanged as per ANSI B 16.5 |
| Size Range | 50 mm to 100mm |
| Color | Black |
| Standard | As per manufactuer |
| Solid PP NRV Flange End | |
| Material Of Construction | Polypropylene (PP) |
| Design | 1 Piece Body. |
| Max working temp | 50 c (consistently) |
| Connection End | Flanged End Thread & Plain |
| Size Range | 50 mm to 100mm |
| Color | Black |
| Standard | As per manufactuer |
| Bolt Nut PP NRV Flange End | |||
|---|---|---|---|
| No. | DESCRIPTION | MATERIAL | QTY. |
| 1 | Top Body | Polypropylene | 1 |
| 2 | Bottom body | Polypropylene | 1 |
| 3 | Ball | Rubber Coated | 1 |
| 4 | Seat Ring | Neoprene Rubber | 1 |
| 5 | Stud & Nut | MS | Req. |
| Solid PP NRV Flange End | |||
| 1 | Body | Polypropylene | 1 |
| 2 | Ball | Rubber Coated | 1 |
| 3 | Seat Ring | Neoprene Rubber | 1 |
| 4 | Ball Vocer | PP | 1 |
